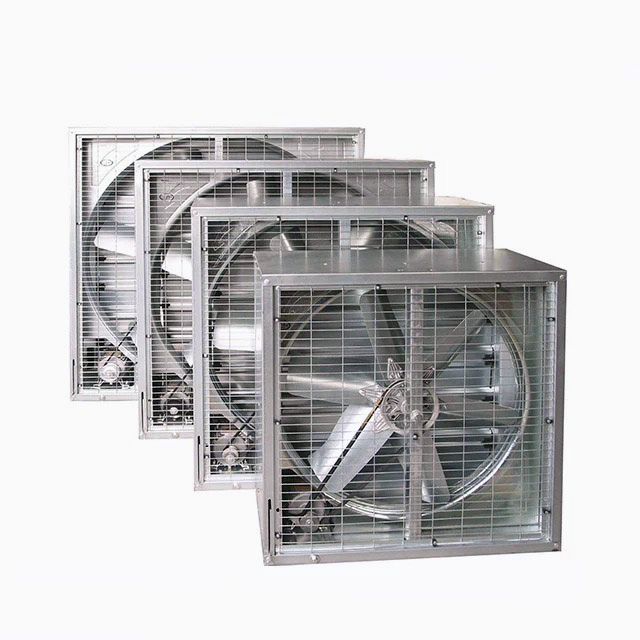

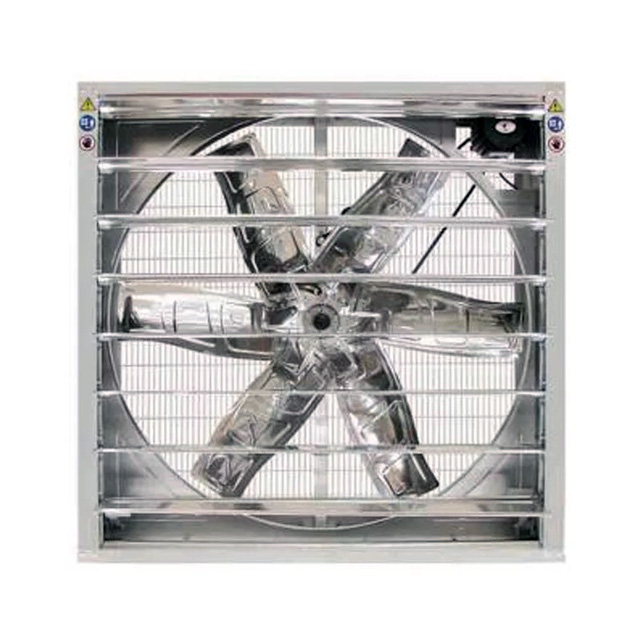

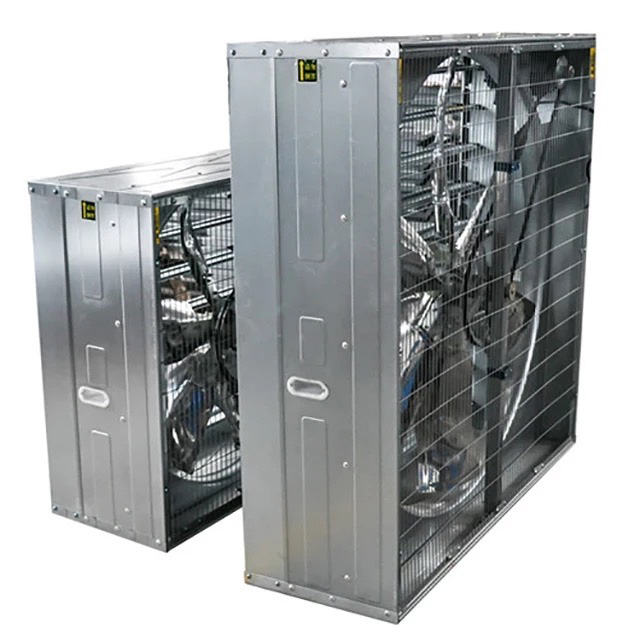

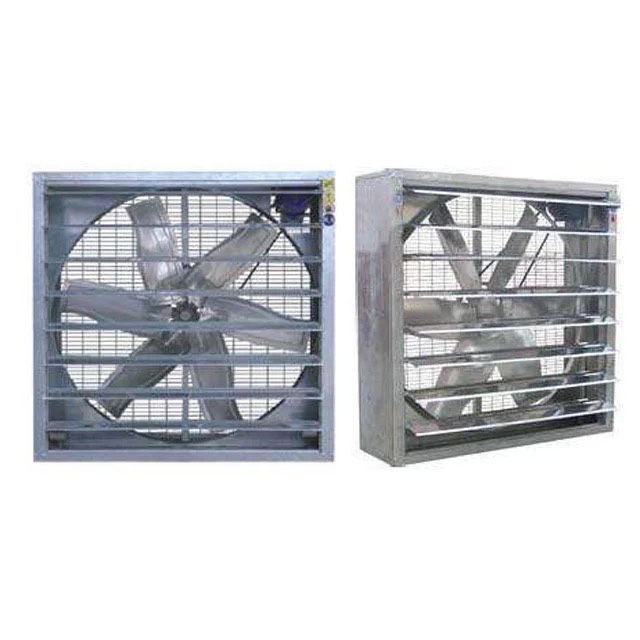

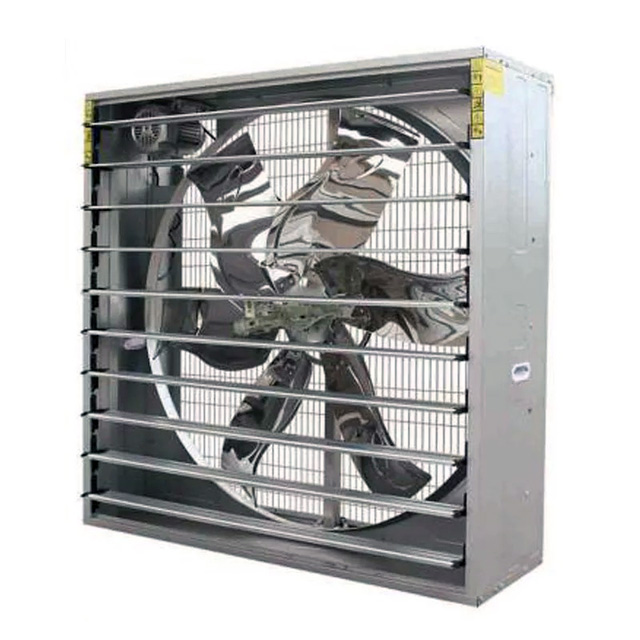

Ventilation Fans Push Pull Drop Hammer Extractor Axial Exhaust Fan
UFANAIR high class fan is composed of a blade , motor , outer frame, protecting nets and supporting frames and shutters . The shutters are opened by the Push-Pull centrifugal system.
The Major parts are made of galvanized steel sheets ( 180g/275g/M2 ) zinc coating ) and stainless steel sheets.
Based on sound aerodynamic principles , wind resistance in minimized and efficient airflow is achieved . All products are used in a wide range of settings , including various types of farms , greenhouses and factory buildings.

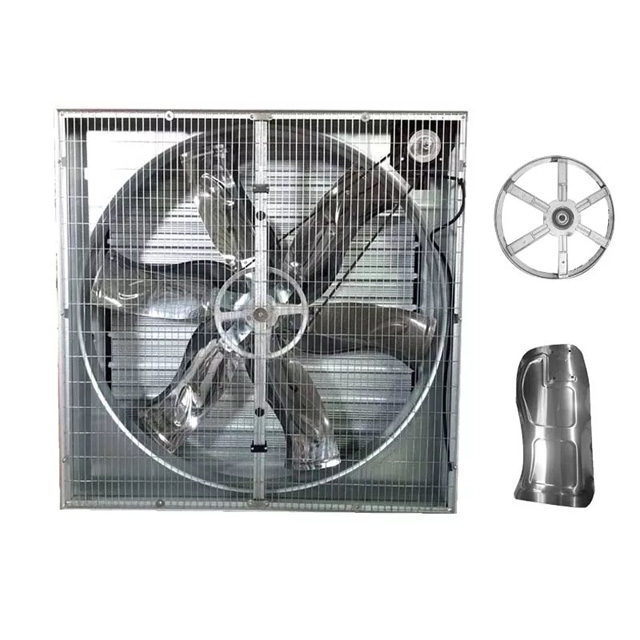

Fans Mainly consists of the blade ,motor,frame , protect net , bracing cage ,shutters .
The motor drives the blade to cause air flow and the louver window can open and close automatically to keep the dust from entering.
Item No. | Drive | Blades Diameter mm | Air Flow m³/h | Watts w | Noise Decibles dB |
Power Parameter
| Size (L*W*H) mm |
YF-400 | Direct | 360 | 9000 | 180 | max 70 | 380V/50HZ | 400*400*310 |
YF-480 | Direct | 440 | 10000 | 180 | max 70 | 380V/50HZ | 480*480*310 |
YF-620 | Direct | 580 | 18000 | 370 | max 70 | 220V/50HZ 380V/50HZ | 600*600*370 |
YF-800 | Belt | 710 | 22000 | 370 | max 65 | 220V/50HZ 380V/50HZ | 800*800*370 |
YF-900 | Belt | 800 | 23000 | 370 | max 65 | 220V/50HZ 380V/50HZ | 900*900*370 |
YF-1000 | Belt | 900 | 25000 | 750 | max 65 | 220V 50HZ 380V/50HZ | 1000*1000*400 |
YF-1100 | Belt | 1000 | 32000 | 750 | max 64 | 220V/50HZ 380V/50HZ | 1100*1100*400 |
YF-1380 | Belt | 1250 | 44000 | 1100 | max 64 | 220V/50HZ 380V/50HZ | 1380*1380*400 |
YF-1530 | Belt | 1400 | 55000 | 1500 | max 64 | 220V/50HZ 380V/50HZ | 1530*1530*400 |
Remarks
YF-400, YF-480, YF-620 Fan with 4 fan blades which motor-drive blades directly type avoid the frequent problem occurred by belt.
The other models are having 6 fan and drive by fan belt.
Power parameter can be customized.
Exhaust Fan Inverter : the fan speed can be adjusted.
Feature
Advanced balancing open-close mechanism can ensure shutter 100% open and shut down;
Mainly used for greenhouse, industrial workshop, livestock housing;
Low noise and high air flow capability;
Blades can clean themselves automatically when they are running;
High efficiency motor with stable performance.
